Induction Hardening Power Supply-Luoyang Berry Technology Co., Ltd.

QUALITY PRODUCT

Feature

Compatibility and Multi-mode Operation

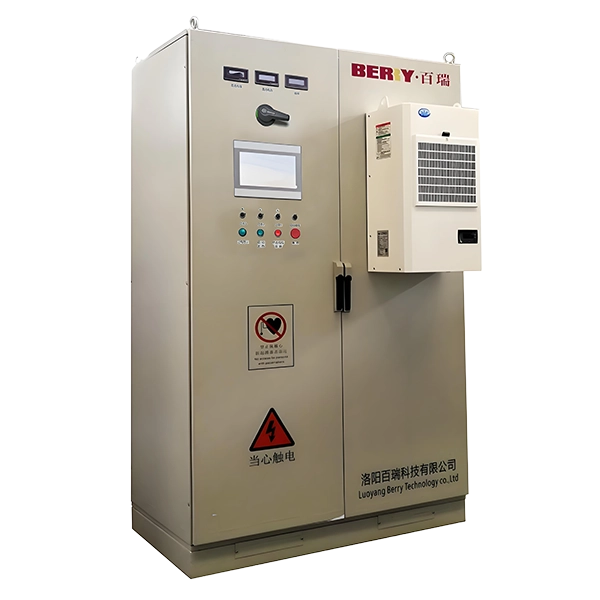

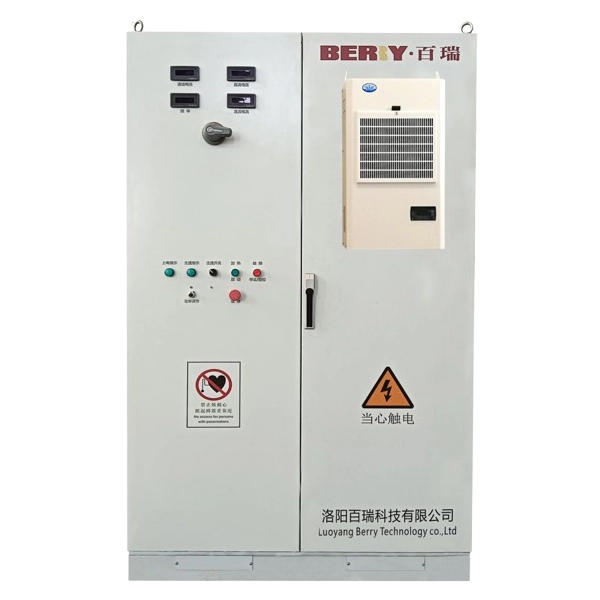

The power supply is divided into three series: BT-I, BT-M and BT-SMC, and their operating frequency bands are: 1.5KHz-45KHz, 100KHz-300KHz, 200KHz-450KHz, and they are all automatically tracking the intrinsic frequency, guaranteeing the equipment to start up 100%, and supporting continuous quenching and single hardening; adjustable impedance matching, suitable for all kinds of coil design.

High Efficiency Conversion

Power supply efficiency up to 85%-95%, reducing energy loss and heat generation; support light load high efficiency mode, in line with global energy efficiency standards; LC resonance, output without high voltage, to improve the efficiency of the full load range;

Stability and Reliability

With the international synchronization of the circuit design, the main power devices and control board chips are used in the world's leading brands, and all components are used in military-grade aging screening process, thus ensuring the high reliability and low failure rate of the power supply.Power supply output voltage fluctuation range of ≤ ± 1%, to adapt to the power grid fluctuations and load changes; the use of solid-state capacitors, high temperature-resistant components, MTBF up to 100,000 hours or more. Structural design adopts European standards, single-sided open door to save equipment space, easy to standardize; single motherboard fully integrated control, reduce the failure rate, easy to follow-up maintenance and upgrading.

Safety

A comprehensive intelligent protection system, with automatic pressure limiting, automatic current limiting, overheating, water pressure, water pressure is not enough, three-phase into the wrong phase, phase-loss protection and other automatic protection functions, so that the equipment in operation in a timely and comprehensive protection.

Environmental Protection and Safety Certification

Non-polluting materials: in line with RoHS, REACH regulations, restricting lead, mercury and other hazardous substances: safety certification: UL, CE, CCC, TÜV and other certificates, to protect the electrical insulation and EMC performance.

Intelligent System

①The product adopts the Internet of Things to realize intelligent identification and management, through the classification and screening of data, it is convenient for operation and maintenance personnel to carry out fault analysis and treatment, and improve the overall efficiency and reliability of the equipment. ② Power supply system through real-time monitoring of voltage, current, temperature and other parameters, analyze the pattern of change of the load and working mode, optimize the power supply output strategy based on historical data, discover potential problems in advance and take measures.

PRODUCT APPLICATIONS

Induction Hardening of Engineering Machinery Parts

Induction hardening is a widely used surface heat treatment process that enhances the durability and wear resistance of engineering machinery parts. By using electromagnetic induction to heat the surface of metal components, followed by rapid cooling (quenching), this method creates a hardened layer that significantly improves fatigue strength and performance under heavy-duty conditions.

PRODUCT APPLICATIONS

Induction Hardening for Automotive Parts

Induction hardening is a highly efficient heat treatment process widely used in the automotive industry to improve the durability and performance of critical components. By rapidly heating and then quenching the surface of metal parts, induction hardening increases hardness, wear resistance, and fatigue strength without affecting the core properties of the material.

PRODUCT APPLICATIONS

Induction Hardening of Tractor Parts

Induction hardening is a heat treatment process widely used to enhance the surface hardness and wear resistance of steel components. In the agricultural industry, particularly in tractors, this technique plays a critical role in extending the lifespan and performance of key parts subjected to high stress and friction. Components such as gears, axles, shafts, and pins benefit significantly from induction hardening, ensuring better durability and reliability in demanding field conditions.

PRODUCT APPLICATIONS

Motorcycle Parts Induction Hardening

Induction hardening is a critical heat treatment process used to enhance the durability and wear resistance of motorcycle parts. By applying high-frequency electromagnetic fields to heat the surface of metal components, followed by rapid quenching, induction hardening creates a hardened outer layer while maintaining a tough and flexible core.

PRODUCT APPLICATIONS

Brazing

PRODUCT APPLICATIONS

Metal Heat Treatment

GET FREE QUOTE

Please Fill In Your Requirements

PROCESS INTRODUCTION

Induction Hardening Process

01
Power Supply Activation

The induction power supply converts 50/60 Hz AC into high-frequency AC (typically 1–400 kHz) using solid-state inverters (IGBT/MOSFET).The output power (ranging from a few kW to several MW) is adjusted based on the hardening requirements.
02
Induction Coil Setup

A copper inductor coil (designed to match the part geometry) is placed near or around the workpiece.The coil carries the high-frequency current, generating an alternating magnetic field.
03
Eddy Current & Resistive Heating (Joule Heating)

The magnetic field induces eddy currents on the workpiece surface.Due to the material’s electrical resistance, these currents generate localized heat (skin effect).Heating occurs rapidly (within seconds) to austenitizing temperature (typically 750–1000°C for steel).
04
Quenching (Rapid Cooling)

Immediately after heating, the part is quenched using:Water;Polymer solutions (e.g., PAG);Oil (for alloy steels);This rapid cooling transforms austenite into martensite, creating a hard surface layer.
05
Tempering (Optional Post-Hardening Treatment)

Some applications require tempering to reduce brittleness while maintaining hardness.Done in a separate furnace or via induction reheating to a lower temperature (~150–400°C).
