Step Shaft Hardening Inductor

The step shaft hardening inductor is a tool specifically designed for the induction hardening of shaft parts with different diameters or “steps”. It plays a vital role in the induction heating and hardening process, enabling selective surface hardening of specific areas of the shaft while maintaining internal toughness.

Characteristics and working principle of stepped shaft induction hardening inductor:
Stepped shafts are shafts whose diameter varies along their length, forming multiple “steps” or rungs. Due to these irregular geometries, uniform and accurate induction hardening of stepped shafts is challenging. Stepper shaft induction hardening sensors are designed specifically for this complexity.

Customized design:

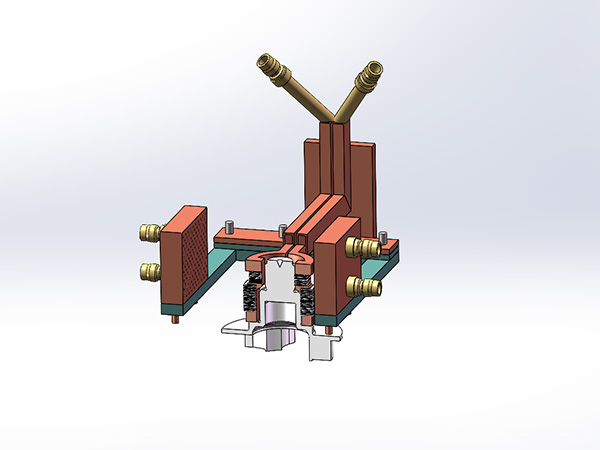

Shaped Coils: Instead of simple round coils, stepper shaft induction hardening inductors are typically custom designed to fit the specific geometry of the stepper shaft, including different diameters, chamfers, slots, etc. The coil shape is precisely aligned with the stepper shaft geometry. The shape of the coil is precisely matched to the contours of the workpiece to ensure that the magnetic field and eddy currents are evenly distributed over the area to be hardened.

Power Density Control: Different diameters require different power densities to achieve uniform heating. The inductor is designed with this in mind and power distribution is optimized by adjusting the number of turns, spacing of the coils or by using a magnetic concentrator to ensure that the desired hardening temperature and depth of hardening is achieved at each step.

Heating method:

Single-shot hardening: For some stepped shafts, the entire area to be hardened can be heated at once. In this method, the inductor is designed to cover all target areas simultaneously and the workpiece is usually rotated to ensure uniform heating. This method allows for better control of hardening patterns and distortion and is particularly suitable for complex stepper axes.

Scan hardening: Scan heating may be used for longer stepper shafts or where more flexible control is required. The inductor or the workpiece (or both) are moved axially relative to each other during the hardening process. The inductor is usually short and heats only a small area, which is then quenched immediately afterward. This method allows the scanning speed and power to be adjusted in different areas to accommodate diameter variations.

Quenching System Integration:

Induction quenching inductors are usually integrated with a quench spray system. The quenching medium (e.g., water, polymer solution, or oil) is sprayed onto the surface of the workpiece immediately after heating, ensuring rapid cooling to form a martensitic organization. For stepper shafts, the layout of the quenching nozzles also needs to be precisely designed to ensure effective quenching in all areas of diameter variation.

Advantages of induction hardening sensors for stepped shafts:

Selective Hardening: The ability to accurately surface harden specific areas of the shaft, increasing the wear resistance, fatigue strength and surface hardness of these areas while maintaining the toughness and machinability of other non-critical areas.

Low distortion: Induction heating is fast, concentrating heat on the surface layer, resulting in low overall thermal distortion and reducing the need for subsequent finishing operations.

High efficiency: High degree of automation, high productivity and easy integration into production lines.

Environmentally friendly: Induction heating is cleaner than traditional heat treatment methods, with no flames or fumes and lower energy consumption.

Consistent quality: Precise temperature and time control results in consistent and repeatable hardening results.

Application of Stepped Shaft Induction Hardening Inductor:

Stepped shaft induction hardening is widely used in various industries that have high requirements for the surface hardness of shaft parts, such as:

Automotive industry: crankshafts, camshafts, transmission shafts, gear shafts, steering shafts and so on.

Engineering machinery: a variety of hydraulic cylinder rods, support shafts, connecting shafts.

Machine tool industry: machine tool spindles, guide rails, etc..

Railroad transportation: train axle, etc.

Other machinery manufacturing: a variety of pump shafts, motor shafts, textile machinery shafts, etc.

Manufacturing and design considerations:

Designing and manufacturing high quality stepper shaft induction hardening inductors requires specialized knowledge and experience. Manufacturers consider the following factors:

Workpiece material: The type of steel, carbon content, alloying elements, etc. will affect the effectiveness of induction heating.

Target hardening depth and hardness: The depth of the hardened layer and the final hardness required are determined by the operating conditions of the part.

Frequency selection: the frequency of the induction current determines the depth of heating, high-frequency heating depth is shallow, low-frequency heating depth is deep.

Power and time: The power and time of heating are essential for temperature control and hardening results.

Cooling Media: The choice of quenching media affects the rate of hardening and the final hardness.

Simulation and Testing: Simulation software is often used to perform electromagnetic and thermal stress analyses, and practical tests are performed to optimize the inductor design.
