Profiled Hardening Inductor

A "Profiled Hardening Inductor" is a specialized tool used in induction hardening, a heat treatment process that selectively hardens specific areas of a metal workpiece. The term "profiled" refers to the fact that the inductor coil is designed with a specific shape or "profile" to precisely match the geometry of the part to be hardened, allowing for highly localized and controlled heating.

Here's a breakdown of what it is and how it works:

What is Induction Hardening?

Induction hardening is a process where an alternating electrical current passes through a copper coil (the inductor), creating a rapidly changing electromagnetic field. When a conductive metal workpiece is placed within this field, eddy currents are induced in the workpiece's surface. The resistance of the metal to these eddy currents generates heat, rapidly raising the temperature of the surface layer above its critical temperature (austenite formation). Immediately after heating, the workpiece is rapidly cooled (quenched), typically with water or oil, which transforms the heated surface into a hard martensitic structure, while the core of the material remains relatively softer and tougher.

How does a Profiled Hardening Inductor work?

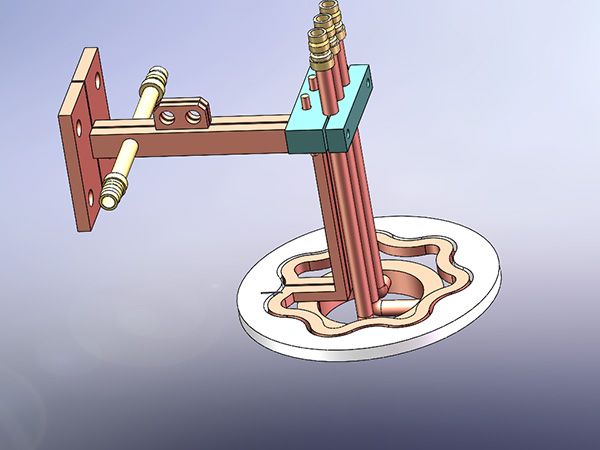

The key to a profiled hardening inductor is its customized shape. Instead of a generic coil, a profiled inductor is designed to closely conform to the contours of the part to be hardened. This precise fit allows for:

Localized Heating: The electromagnetic field is concentrated exactly where hardening is desired. This means only the specific areas requiring increased hardness and wear resistance are heated, minimizing distortion and affecting the surrounding material.

Controlled Heat Pattern and Depth: By precisely controlling the coil's geometry, the frequency of the alternating current, and the heating time, the depth and pattern of the hardened zone can be accurately managed. Higher frequencies tend to produce shallower case depths, while lower frequencies can achieve deeper hardening.

Uniform Hardening: The customized profile helps ensure consistent heating across the targeted area, leading to a more uniform and reliable hardened layer.

Advantages of using Profiled Hardening Inductors:

Precision and Selectivity: Hardens only specific areas, preserving the ductility and toughness of the core.

Reduced Distortion: Localized heating minimizes overall part distortion compared to through-hardening methods.

Speed and Efficiency: Rapid heating and cooling cycles lead to faster processing times and higher production rates.

Energy Efficiency: Heat is generated directly within the workpiece, reducing energy waste.

Clean Process: No open flames or hazardous chemicals are typically involved.

Improved Mechanical Properties: Enhances surface hardness, wear resistance, and fatigue strength in critical areas.

Cost-Effectiveness: Allows for the use of lower-cost steels while still achieving high-performance results.

Automation: Easily integrated into automated production lines.

Typical Applications: Profiled hardening inductors are widely used in industries where high-performance components are critical, including:

Automotive: Gears, crankshafts, camshafts, drive shafts, axles, CV joints, valves, rocker arms.

Aerospace: Various components requiring localized hardening.

Heavy Machinery: Large shafts, rollers, and other wear-prone parts.

Tooling: Dies, punches, and other tools that require hard surfaces.

General Manufacturing: Any steel or cast iron component where selective surface hardening is beneficial for wear resistance or fatigue strength.

In essence, a profiled hardening inductor is a crucial component in leveraging the precision and efficiency of induction hardening to tailor the mechanical properties of a workpiece exactly where they are needed.
