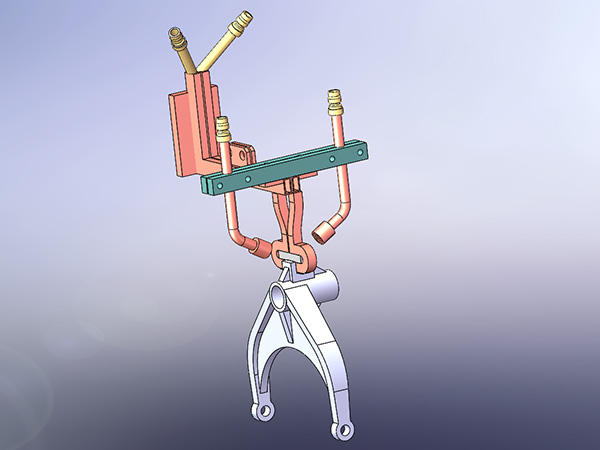

Notch Hardening Inductor

A "Notch Hardening Inductor" refers to a specialized induction coil designed to selectively heat and harden specific notched or grooved areas of a metal workpiece. This is a crucial component in the induction hardening process, a heat treatment method used to improve the surface hardness, wear resistance, and fatigue strength of metal parts.

Key characteristics and considerations for Notch Hardening Inductors:

Custom Design: These inductors are often custom-designed for a particular part and notch geometry to ensure optimal heating patterns and hardened depth.

Precision: The design and placement of the inductor are crucial for achieving uniform hardness and avoiding unhardened areas or excessive case depth, which can lead to issues like cracking or reduced fatigue life.

Application-Specific: Examples of applications include:

Brake gear notches

Claw coupling notches

Gearbox guide block notches

V-slots

Inner surfaces of sets of parts

Gear teeth roots and flanks

Cooling: Due to the high current and concentrated heating, proper cooling of the inductor (typically with water) is essential to prevent it from overheating and being damaged.

Magnetic Flux Concentrators: In some cases, magnetic flux concentrators may be incorporated into the inductor design to further improve heating efficiency and focus the heat in specific areas, especially in complex geometries.

In summary, a Notch Hardening Inductor is a specialized tool in induction heat treatment, meticulously crafted to target and harden specific notched or grooved areas of metal components, thereby enhancing their localized strength, wear resistance, and overall service life.
