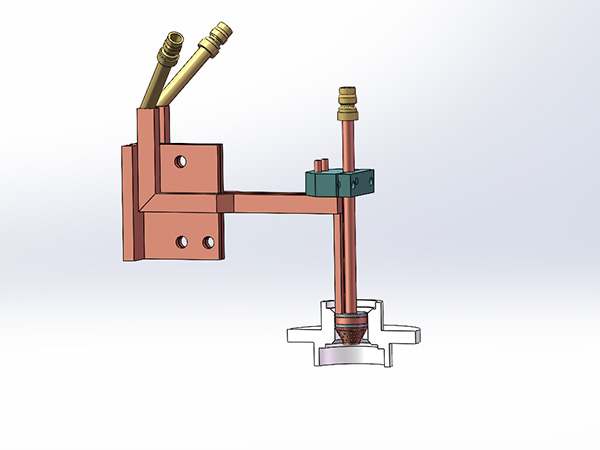

Internal Spline Hardening Inductor

An Internal Spline Hardening Inductor is a specialized tool used in induction hardening, a heat treatment process that strengthens metal parts. Its primary function is to selectively harden the internal teeth (splines) of a component, such as a gear or shaft, without affecting the entire part.

How it Works

The process involves several key steps:

Placement: The internal spline hardening inductor is positioned inside the component, precisely aligning with the internal splines that need to be hardened.

Induction Heating: A high-frequency alternating current is passed through the copper coil of the inductor. This current generates a rapidly changing magnetic field around the inductor.

Eddy Currents: When the magnetic field interacts with the conductive metal of the workpiece, it induces electrical currents, known as eddy currents, within the surface layers of the splines.

Resistive Heating: Due to the electrical resistance of the metal, these eddy currents generate intense heat very rapidly and precisely on the surface of the internal splines. The depth of heating can be controlled by adjusting the frequency of the alternating current, with higher frequencies leading to shallower heating.

Quenching: Once the desired temperature is reached (typically above the austenitizing temperature of the steel), the heated area is immediately quenched. This rapid cooling, often done with a water, oil, or polymer-based spray, transforms the heated surface into a hard martensitic structure, significantly increasing its hardness and wear resistance.

Controlled Hardening: The beauty of this method is its precision. The heat is localized to the splines, leaving the core of the material relatively soft and ductile, which helps maintain the part's overall toughness and prevents distortion.

Key Advantages

Selective Hardening: Only the critical internal spline surfaces are hardened, preserving the ductility of the core.

Reduced Distortion: Because only specific areas are heated, there is less overall thermal stress and deformation compared to through-hardening methods.

Energy Efficiency: Heat is generated directly within the workpiece, leading to higher energy efficiency.

Fast Process: Induction hardening is a very rapid process, contributing to higher production rates.

Clean Process: It's a relatively clean process with no open flames or hazardous fumes.

Internal spline hardening inductors are crucial for manufacturing components like gears, shafts, and other parts with internal splines that require high wear resistance and strength in those specific areas, while maintaining a tough core.
