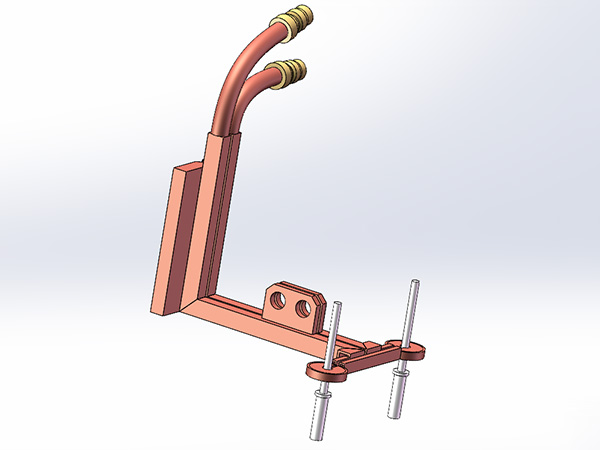

Double Hole Small Shaft Hardening Inductor

A Double Hole Small Shaft Hardening Inductor is a specialized induction coil designed for the heat treatment of small shafts, specifically for the process of induction hardening.

Here's a breakdown of what that means:

Inductor (or Induction Coil): This is the core component of an induction heating system. It's typically a coil of copper tubing through which high-frequency alternating current (AC) flows. This current generates a rapidly changing magnetic field within and around the coil.

Induction Hardening: This is a surface hardening process where a metal part (in this case, a small shaft) is placed within or near the inductor. The changing magnetic field induces eddy currents within the surface of the metal. The electrical resistance of the metal converts these eddy currents into heat, rapidly raising the temperature of the surface layer above its austenitizing temperature. The part is then quickly quenched (cooled), typically with water, oil, or polymer solutions, which transforms the heated surface into a hard martensitic structure, while the core remains relatively tough.

Double Hole: This refers to the specific design of the inductor. Instead of a single opening, it has two distinct holes or channels. This design is often used when you need to harden two specific areas on a small shaft simultaneously or when the geometry of the shaft allows for two points of induction heating to optimize the hardening process. It can also be designed to heat two small shafts at the same time for increased productivity.

Small Shaft: This indicates the application for which the inductor is designed. It's tailored for components with relatively small diameters and lengths, such as those found in motors, pumps, automotive parts, or various machinery.

Key Features and Benefits:

Precise Heating: Induction heating allows for very precise and localized heating, meaning only the desired surface area of the shaft is heated, minimizing distortion and preserving the properties of the core material.

Efficiency: It's an energy-efficient process as heat is generated directly within the workpiece, reducing heat loss to the surrounding environment.

Speed: Induction hardening is a very fast process, leading to higher production rates.

Repeatability: Once set up, the process is highly repeatable, ensuring consistent quality in hardened shafts.

Custom Design: Double hole inductors are often custom-designed to match the specific geometry and material of the small shafts being hardened, ensuring optimal performance.

In summary, a Double Hole Small Shaft Hardening Inductor is a specialized tool used in manufacturing to precisely and efficiently surface-harden small cylindrical components, enhancing their wear resistance and overall durability.
